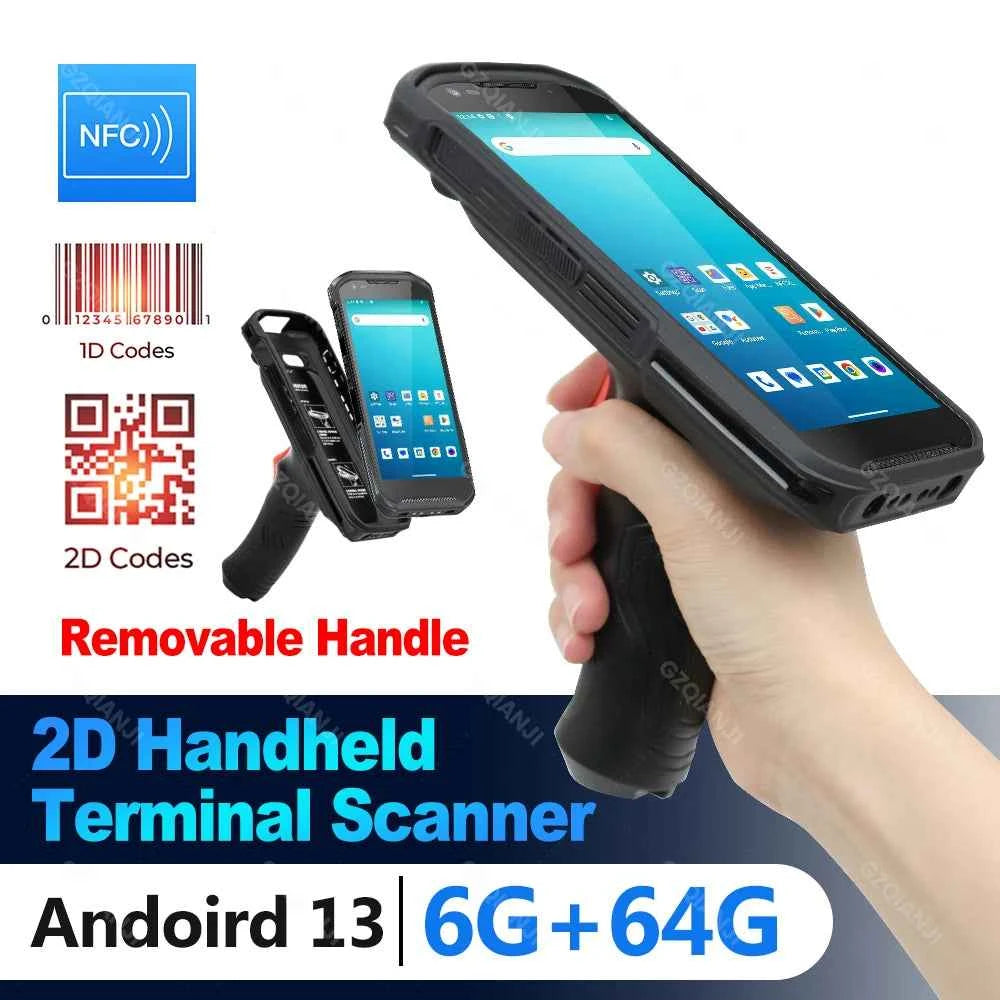

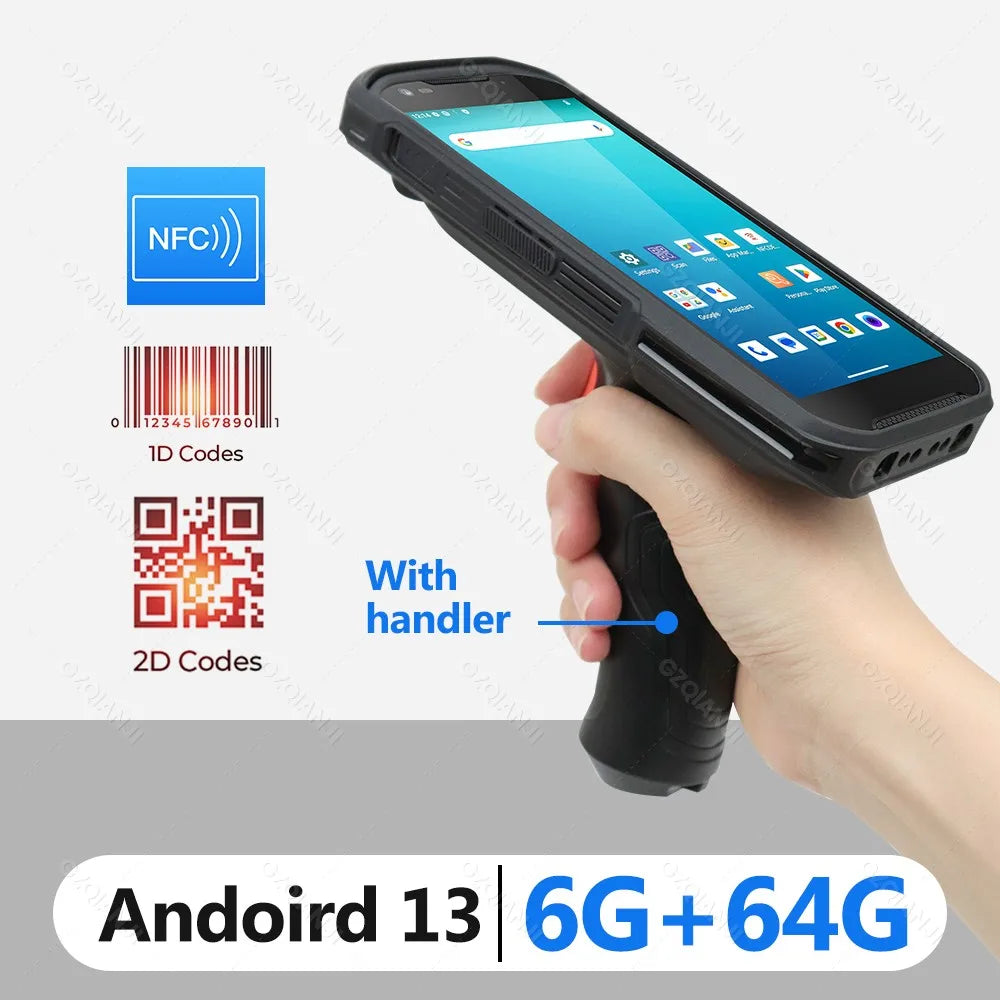

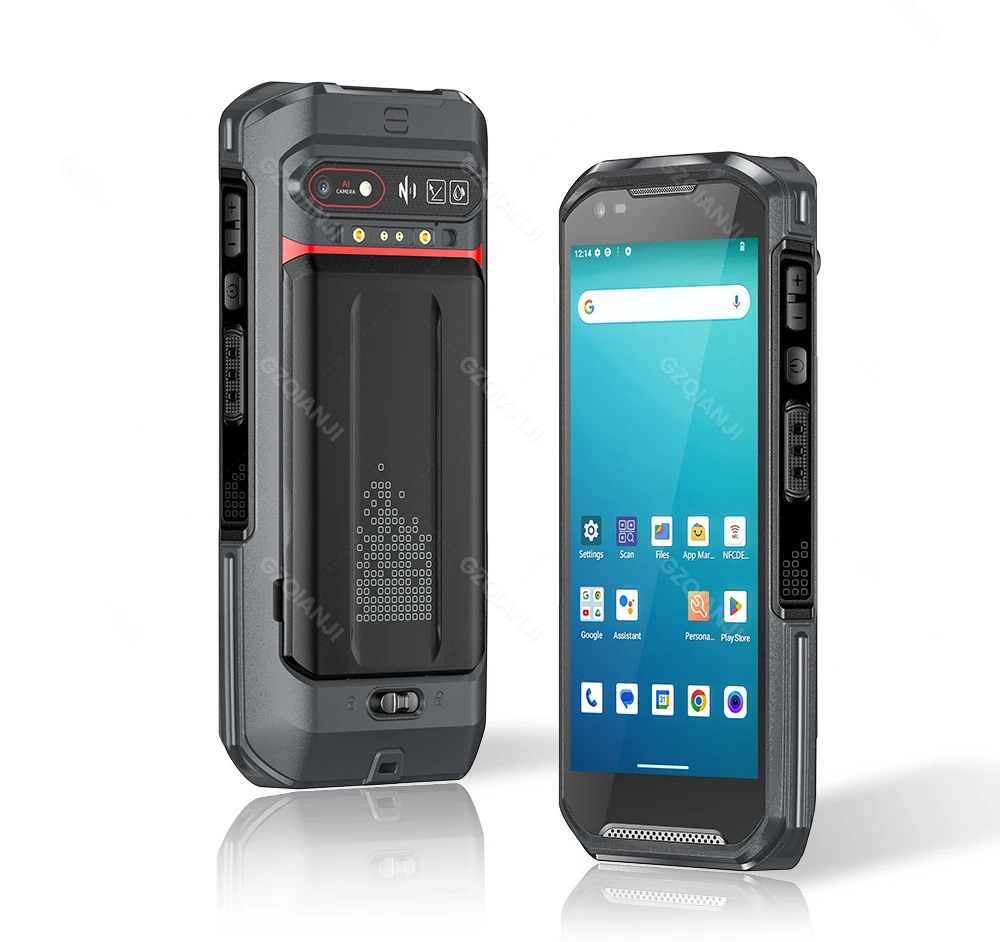

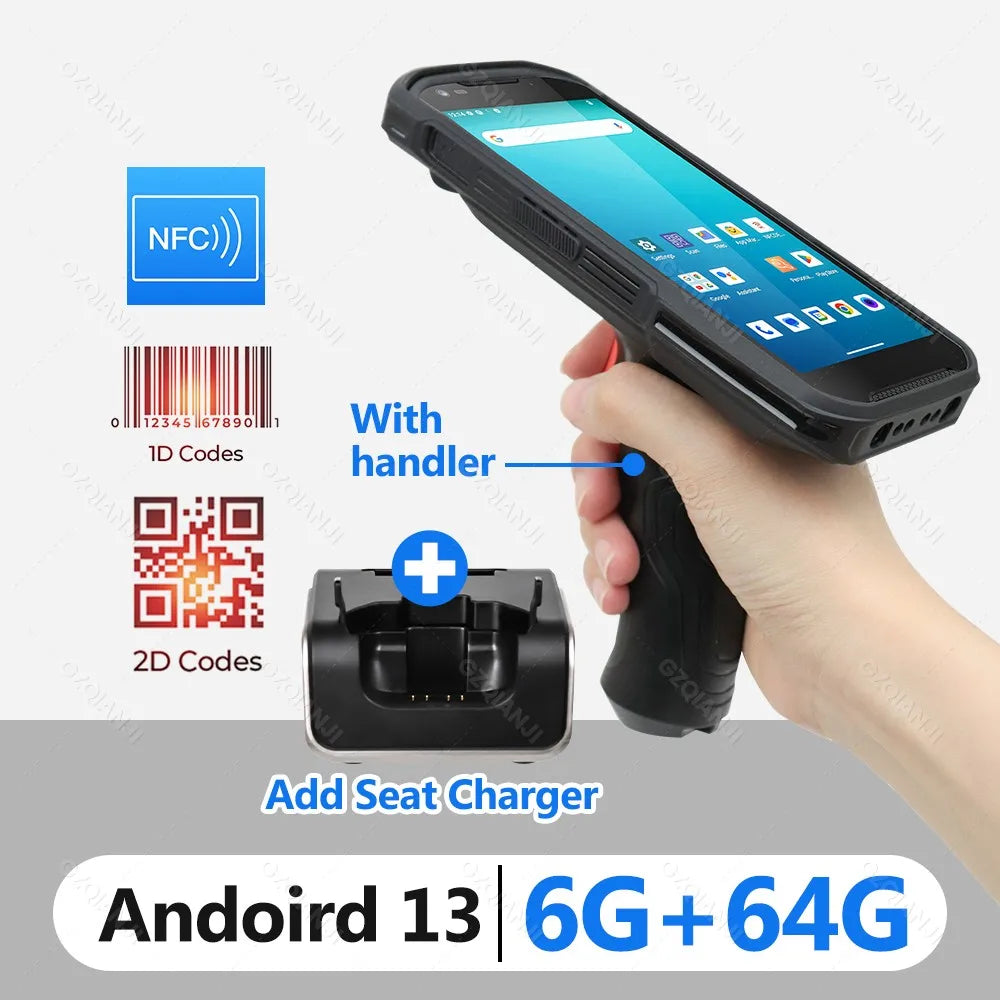

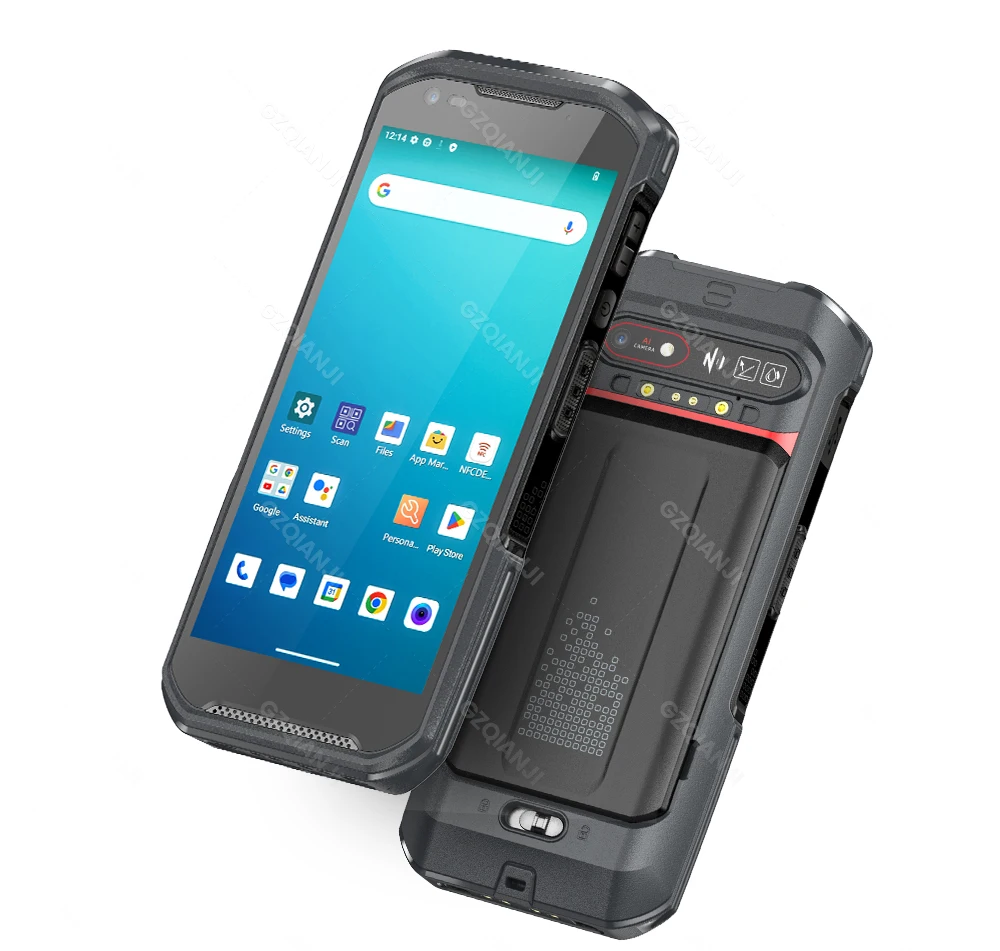

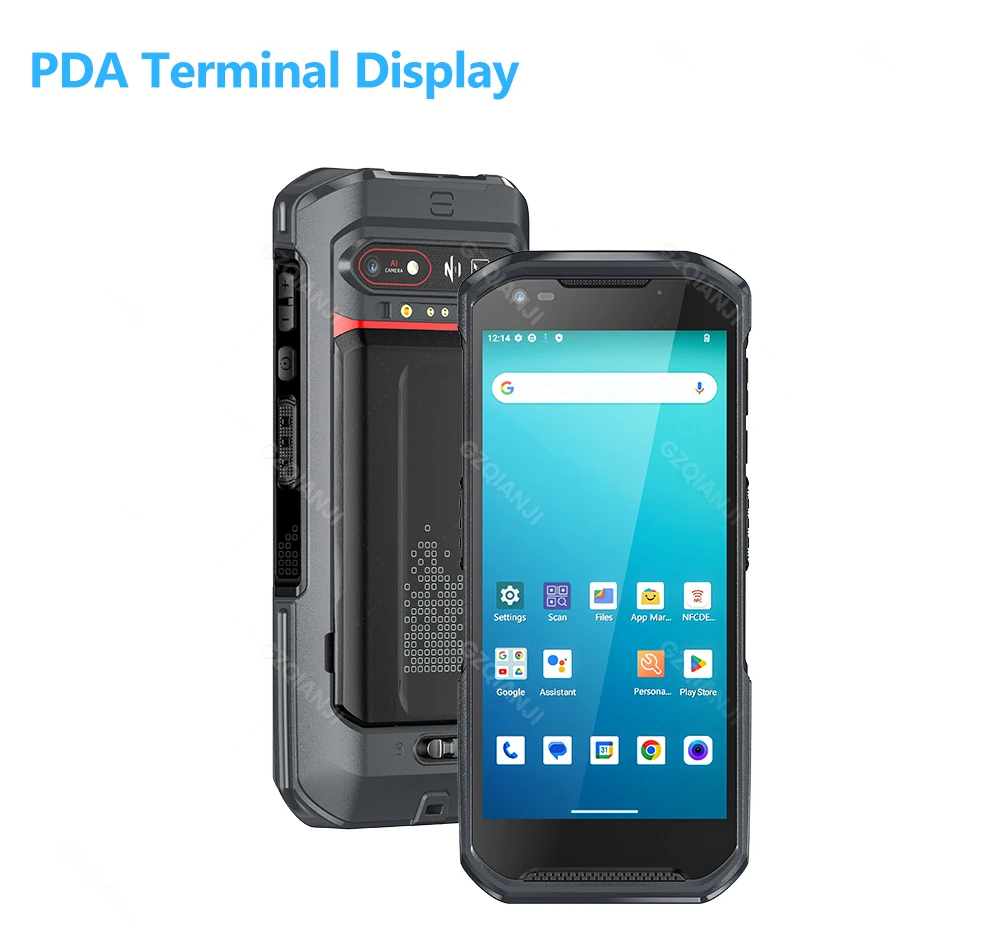

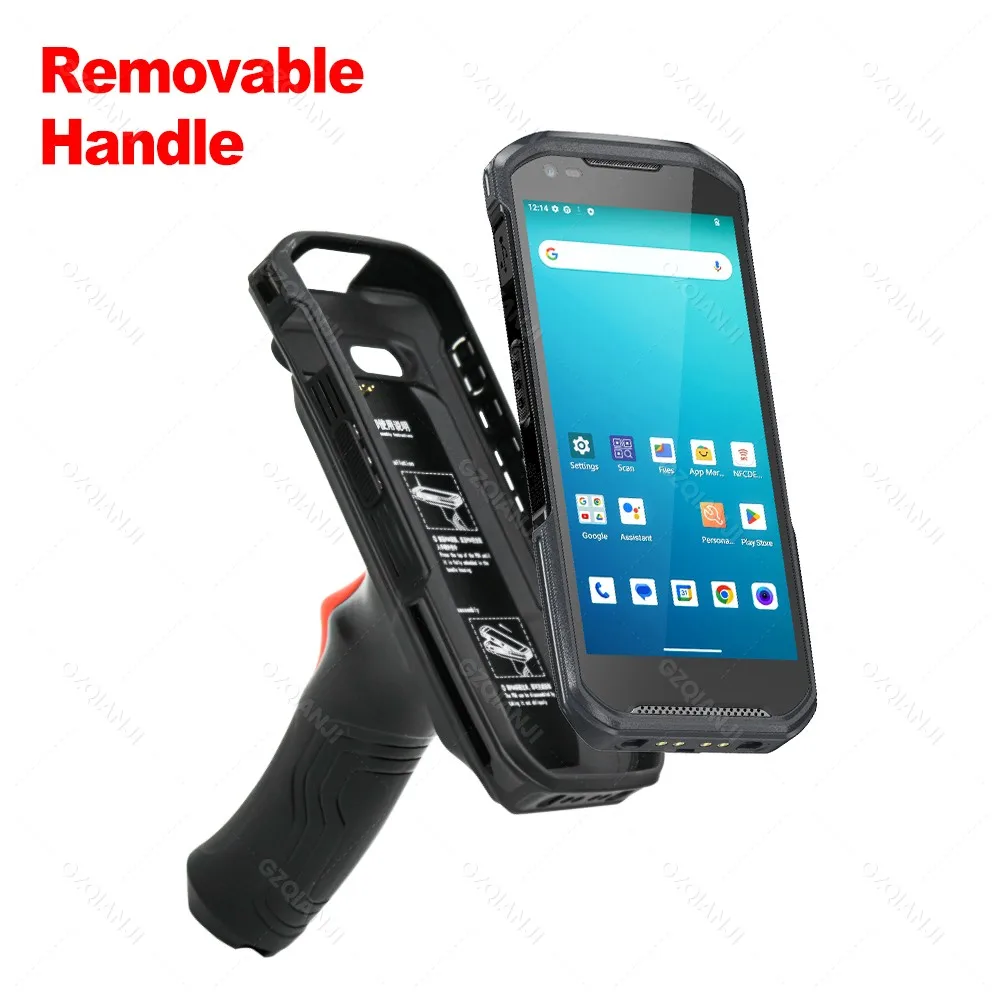

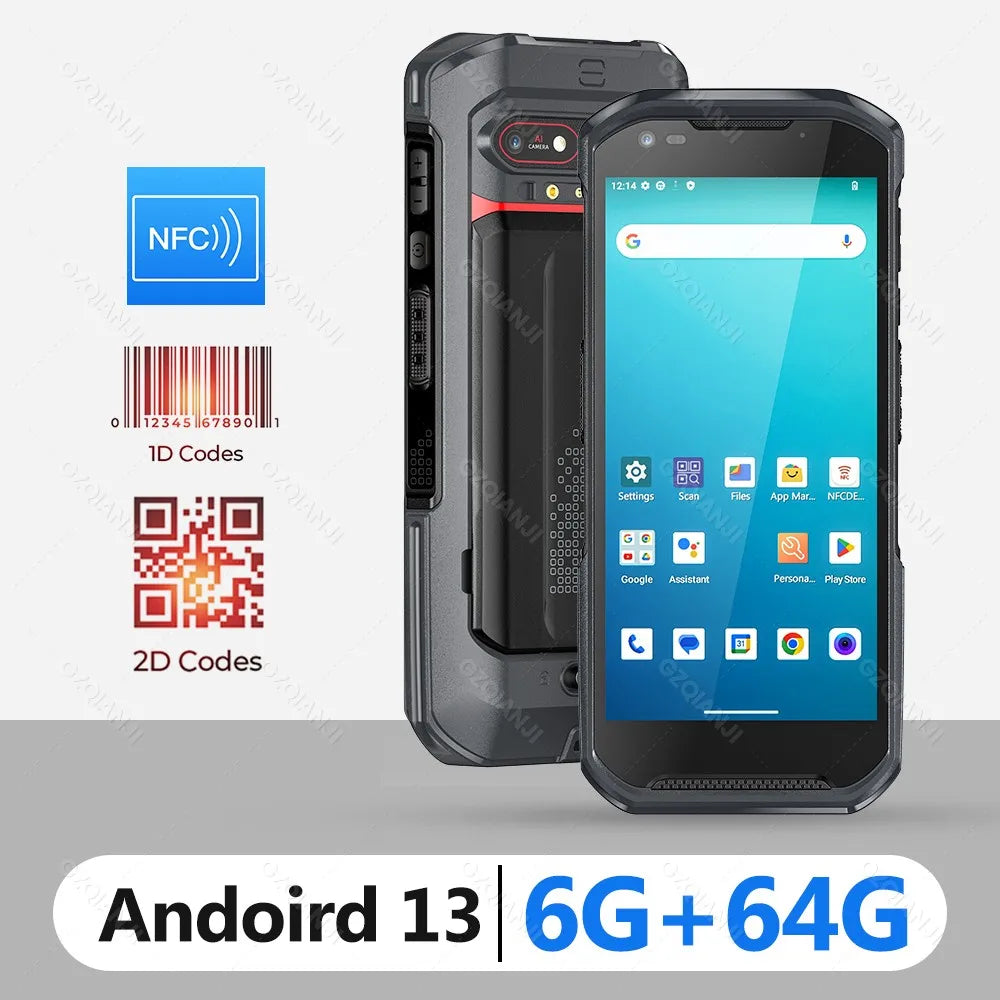

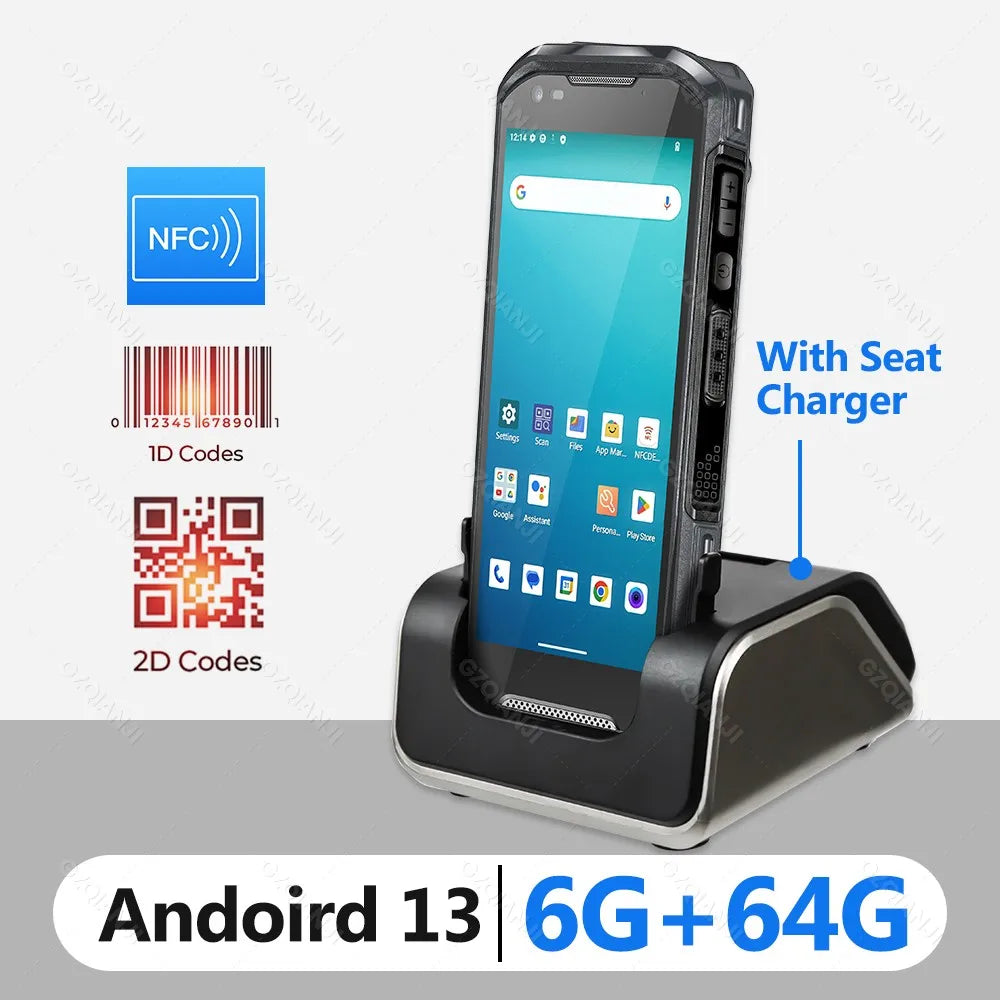

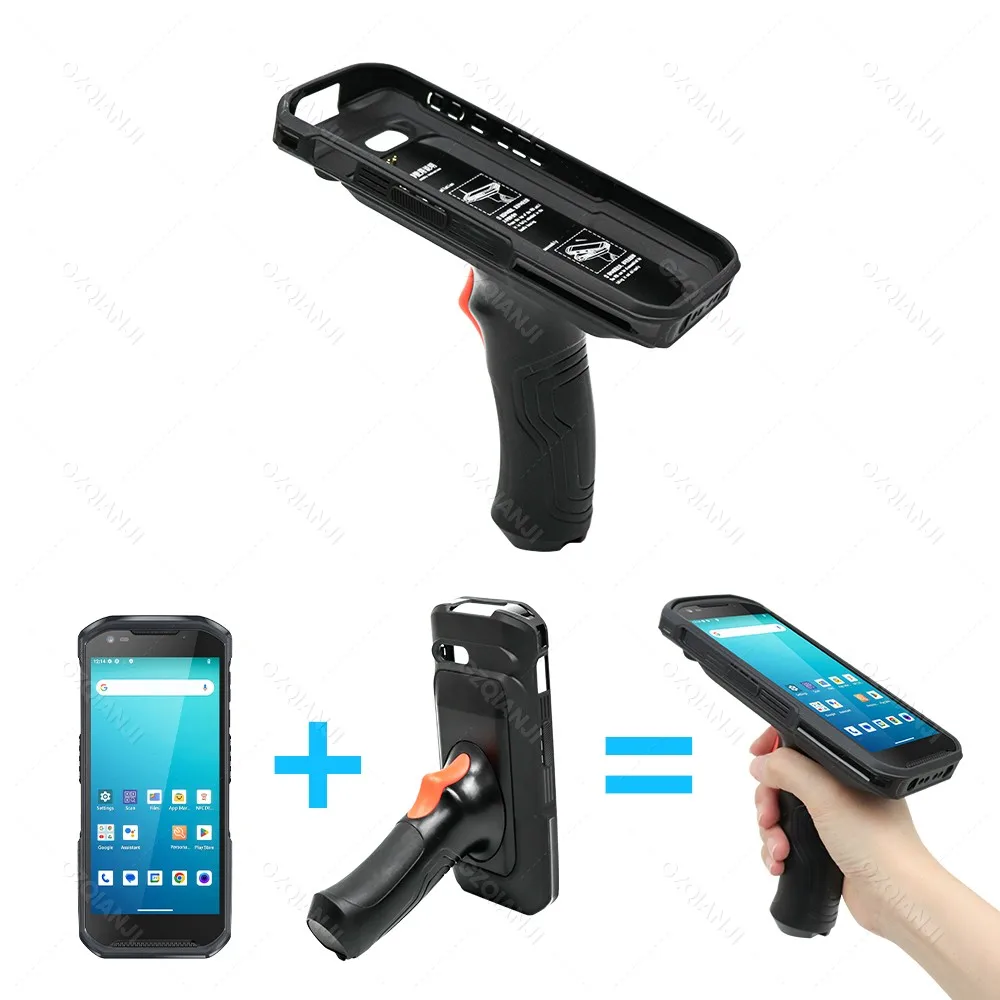

6G64G PDA Terminal Android 13 with NFC Bluetooth Wifi GPS Grip 2D Barcode Scanner Reader Data Collector Mobile Warehouse device
6G64G PDA Terminal Android 13 with NFC Bluetooth Wifi GPS Grip 2D Barcode Scanner Reader Data Collector Mobile Warehouse device
SPECIFICATIONS
Barcode Scanning: 2D N6602-W2 Scanner
Battery capacity: Rechargeable polymer battery (3.8V 5200mAh)
Brand Name: GZQIANJI
CPU: MT6769 Octa-core 64-bit 2.0GHz high-performance processor (2 ARM Cortex-A75 cores +6 ARMCortex-A55 cores)
Colour Depth: 16 bit
Display: 5.5" IPS color display,resolution 720x1440
Front camera: 5MP color camera
High-concerned chemical: None
Interface Type: USB
Model Number: GZPDA08
Novelty: New
Optical Resolution: 300*300
Origin: Mainland China
Product Type: Bar Code Scanner
RAM+ROM: 6GB+64GB(DDR4)
Rear camera: 20MP HD camera,Support auto focus, Flash, Anti-shake, Macro shooting
Scan Breadth: /
Scan Element Type: CMOS
Scan Speed: 100 scans/second
Scanning Light Source: Natural Light + LED
Sealing: IP66
Signal Connection Type: Bluetooth
System: Android 13
Type: Barcode Scanner
New Android 13 NFC 4G Portable Warehouse Data Collection Terminal Industrial Rugged Handheld Android PDA OCR ID Barcode Scanner
OS: Android 13
RAM+ROM: 6+64G
Display: 5.5" IPS color display,resolution 720x1440
Battery capacity: Rechargeable polymer battery (3.8V 5200mAh)
Barcode Scanning: 2D N6602-W2 Scanner
Rear camera: 20MP HD camera,Support auto focus,Flash, Anti-shake, Macro shooting
Front camera: 5MP color camera
NFC: 13.56MHz,Support ISO14443A/B, 15693 agreement,Distance 2cm-5cm
Support hot-swappable
Product Specifications | |
Performance | |
Octa Core | |
CPU |
MT6769 Octa-core 64-bit 2.0GHz high-performance processor (2 ARM®Cortex-A75 cores +6 ARM®Cortex-A55 cores) |
RAM+ROM |
6GB+64GB(DDR4) |
System |
Android 13 |
Data Communication | |
WLAN |
Dual-band 2.4GHz / 5GHz, |
Support IEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v protocol | |
WWAN |
2G:GSM（850/900/1800/1900MHz） |
3G:WCDMA（850/900/1900/2100MHz） | |
4G:FDD:B1/B3/B4/B7/B8/B12/B20 | |
TDD:B38/B39/B40/B41 | |
Bluetooth |
Support Bluetooth5.0+BLE,transmission distance 5-10 meters |
GNSS |
Support GPS,Galileo, Glonass, Beidou |
|
Beidou positioning (Optional) |
Built-in Beidou high precision positioning module, dual frequency, BDS B1I\B2a |
Physical Specifications | |
Dimensions |

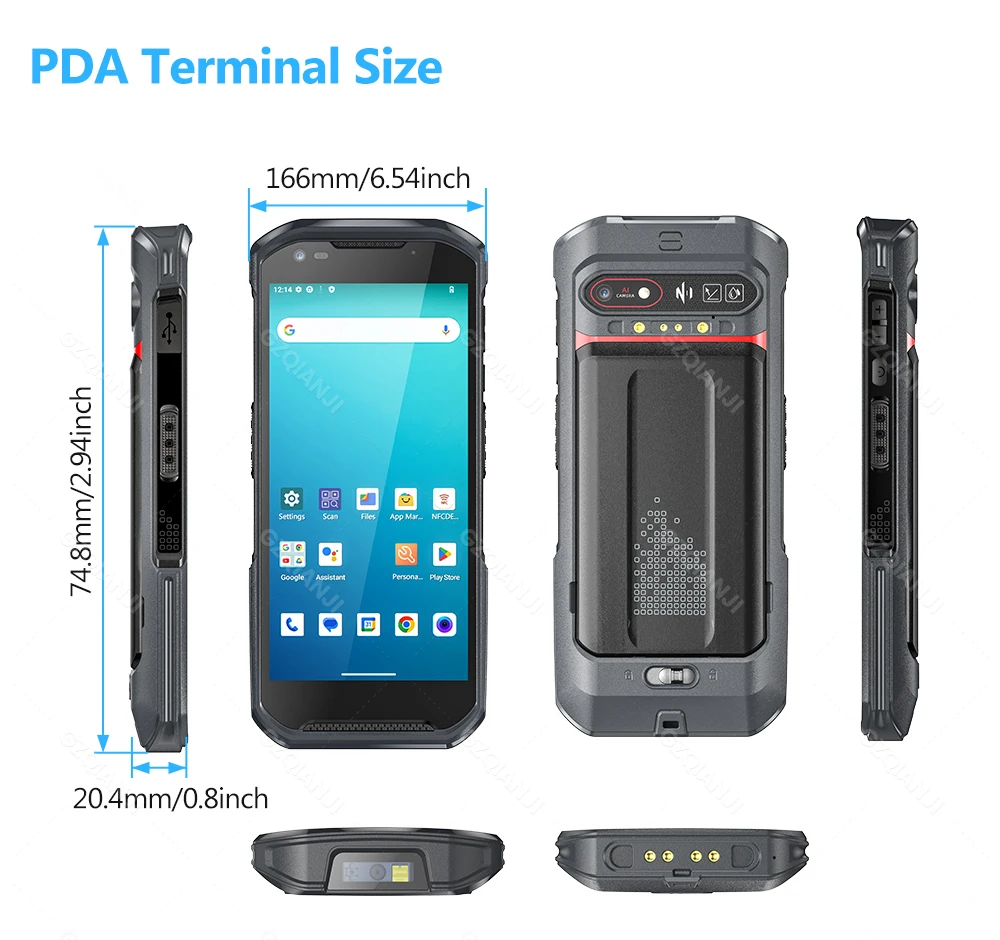

166 mm×74.80mm×20.4mm（The thinnest） |
Weight |
＜300g （Depends on device function configuration） |

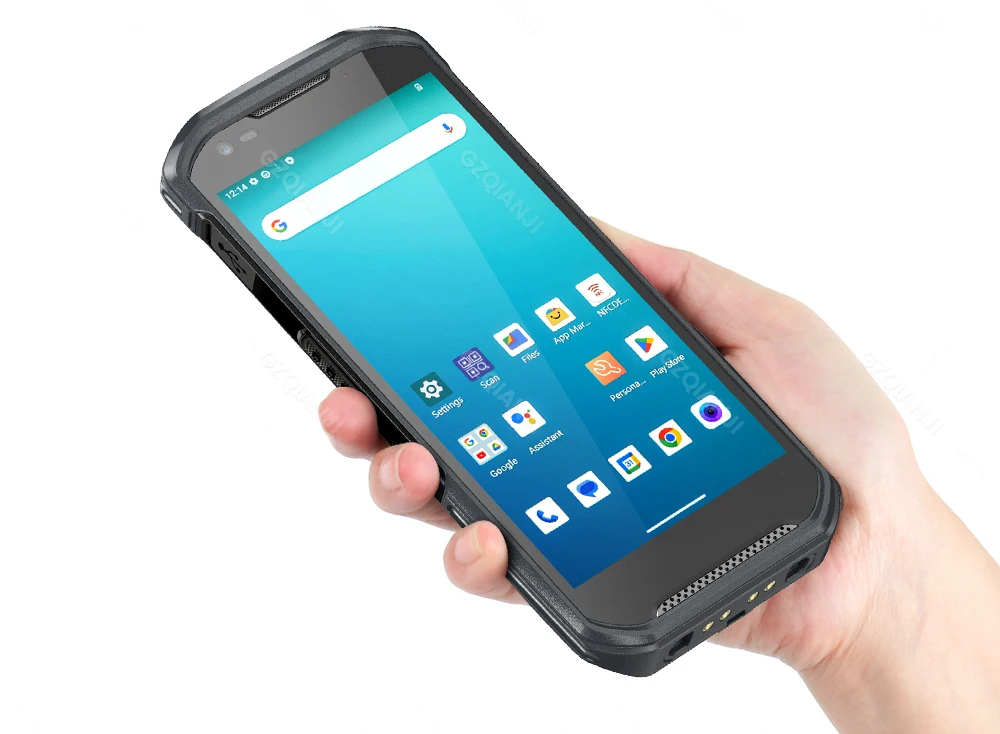

Display |
5.5" IPS color display,resolution 720x1440 |
TP |
Supports multi-touch |
Battery capacity |

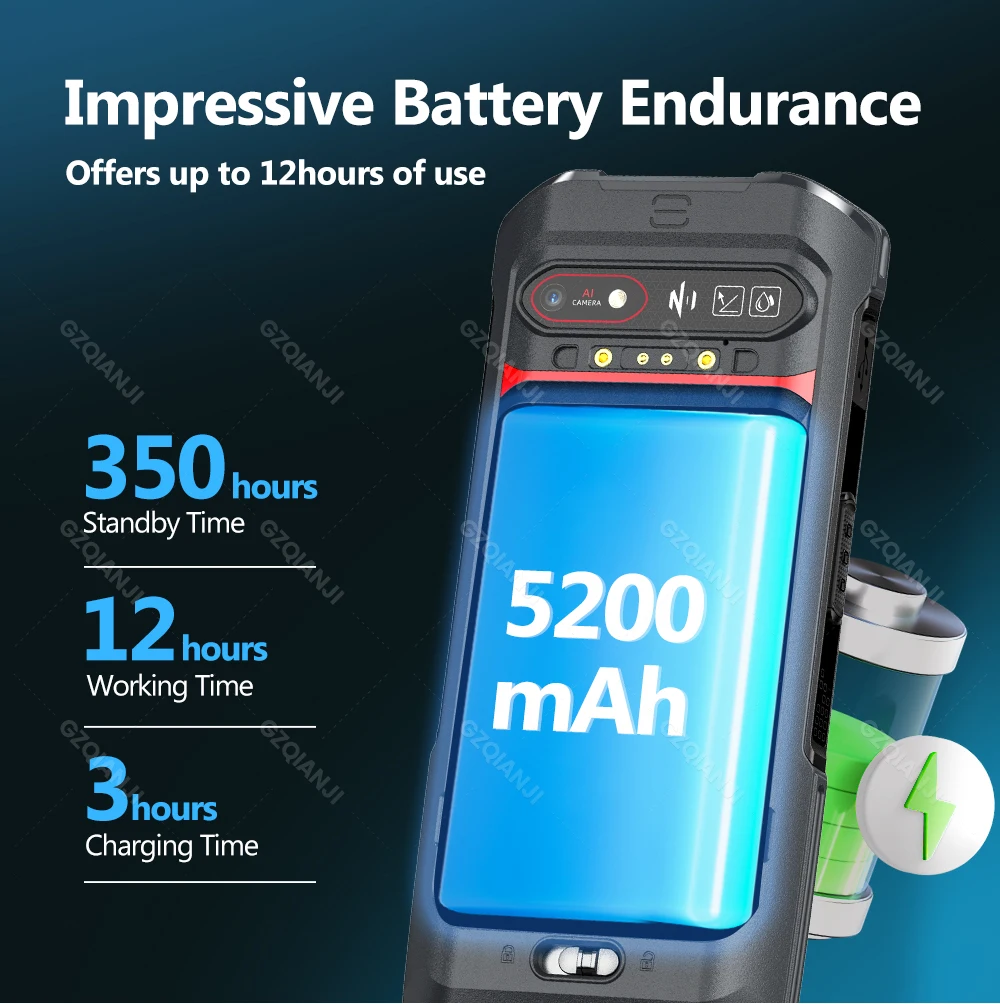

Rechargeable polymer battery (3.8V 5200mAh) |
Standby time＞350 hours | |
Working time＞12 hours | |
Charging time < 3 hours, use standard power adapter and data cable | |

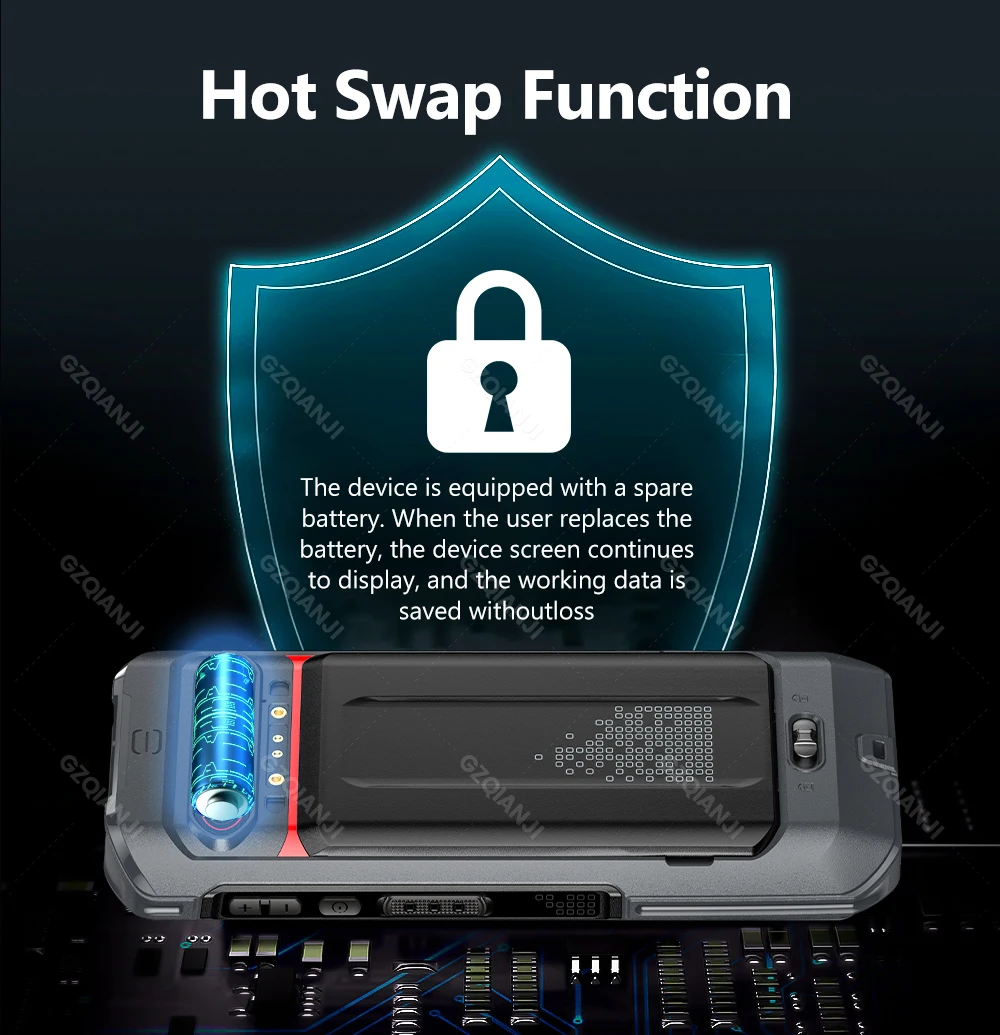

Built-in spare battery, hot swappable |
|
Expansion Card slot |
TF+NANO SIM/NANO SIMx2(Choose one of two) |
|
Communication interface |
Type-C 2.0 USBx1,Support OTG function |
Audio |
Speaker (loudness >95db), dual microphone support noise reduction, Receiver |

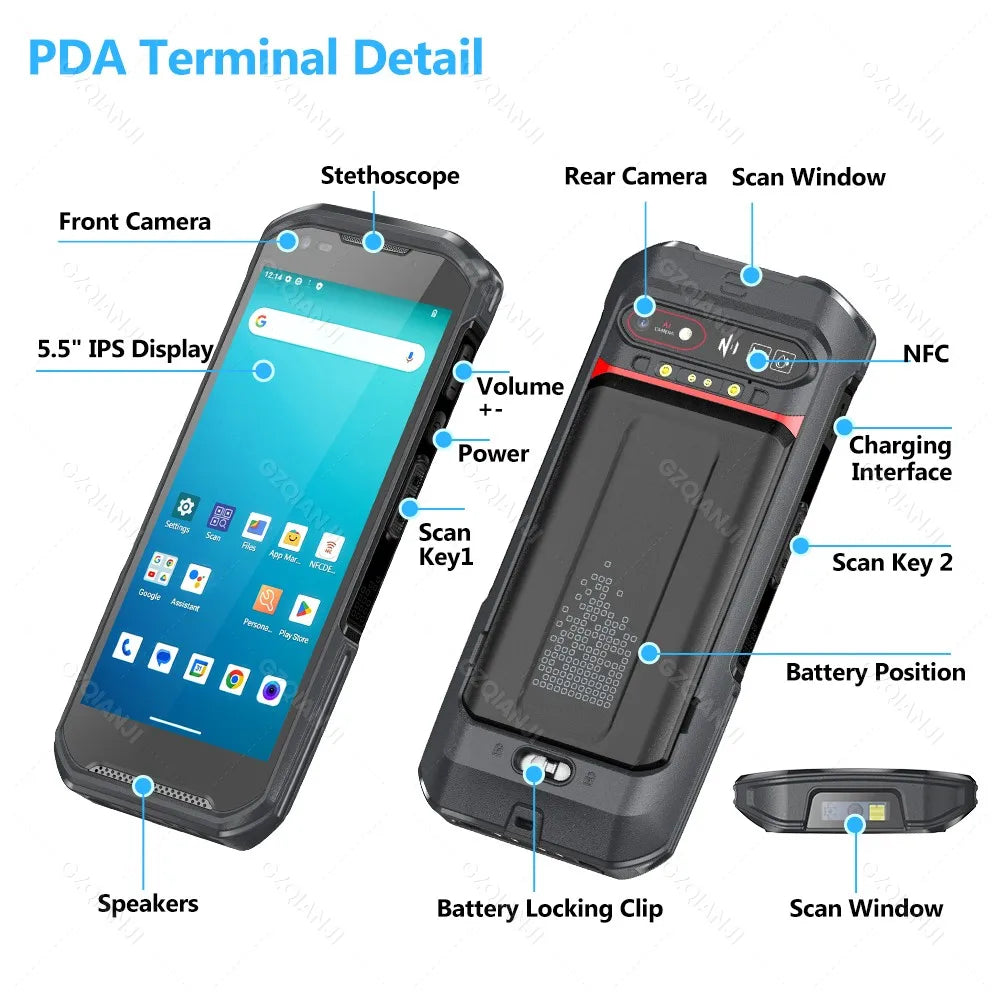

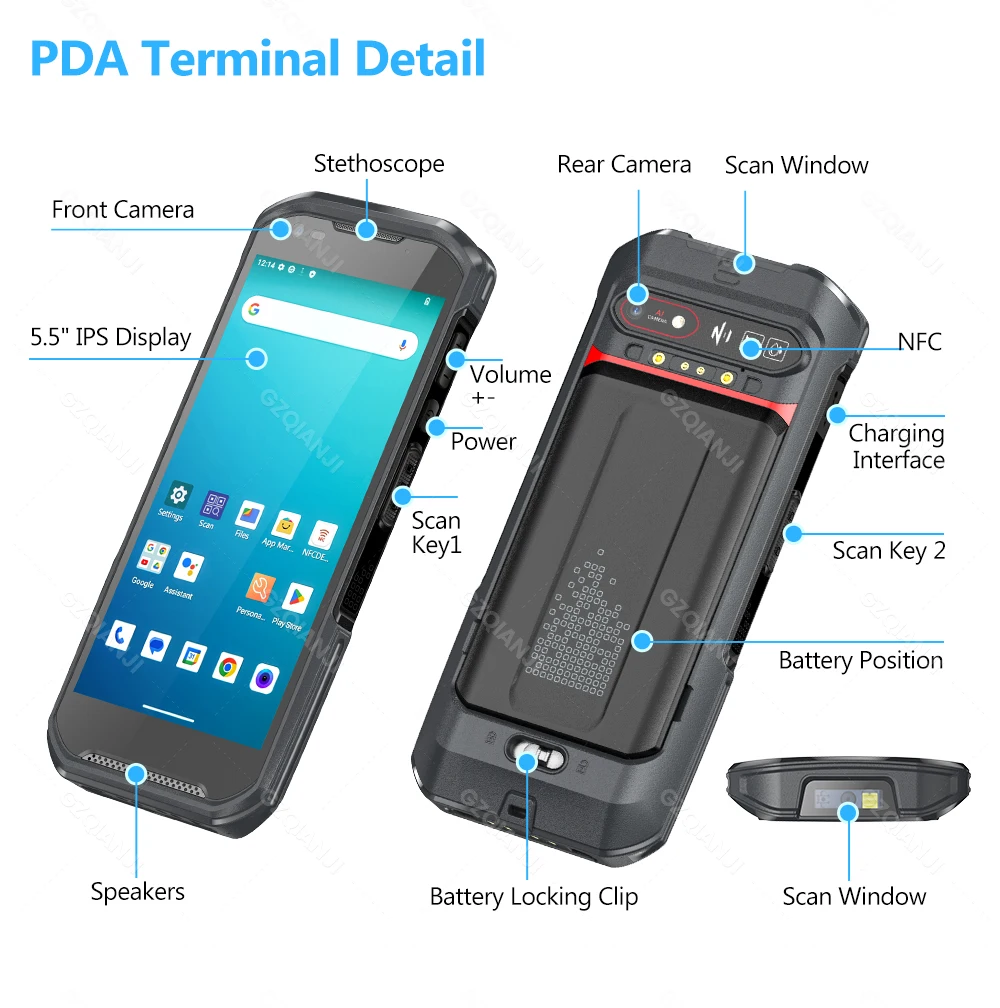

Keypad |
Power key, Volume +/- key,Scan key × 2 |
Sensors |
Gravity sensor, Light sensor, Proximity sensor |
Language/Input Method | |
Input |
English, Pinyin, Five strokes, Handwriting input, Support soft keypad |
Language |
Chinese, English, Korean, Japanese, Malaysian,etc. |

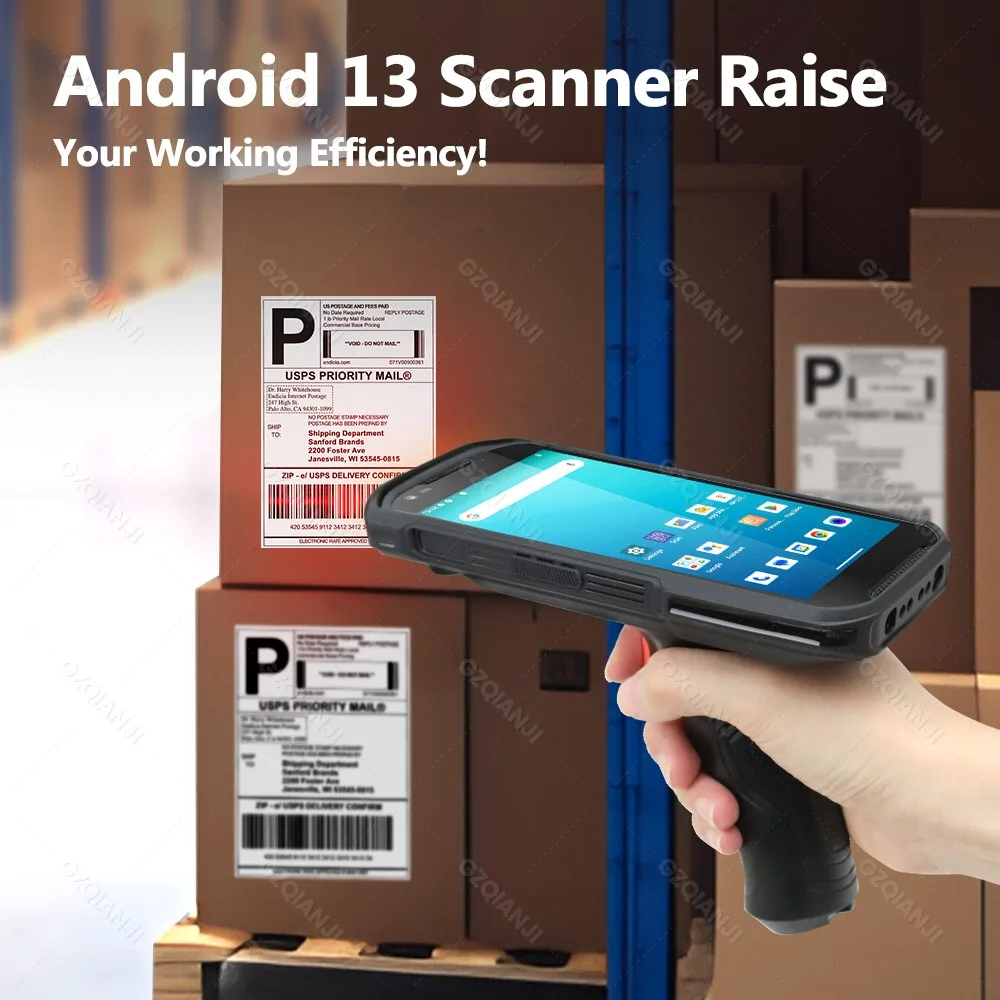

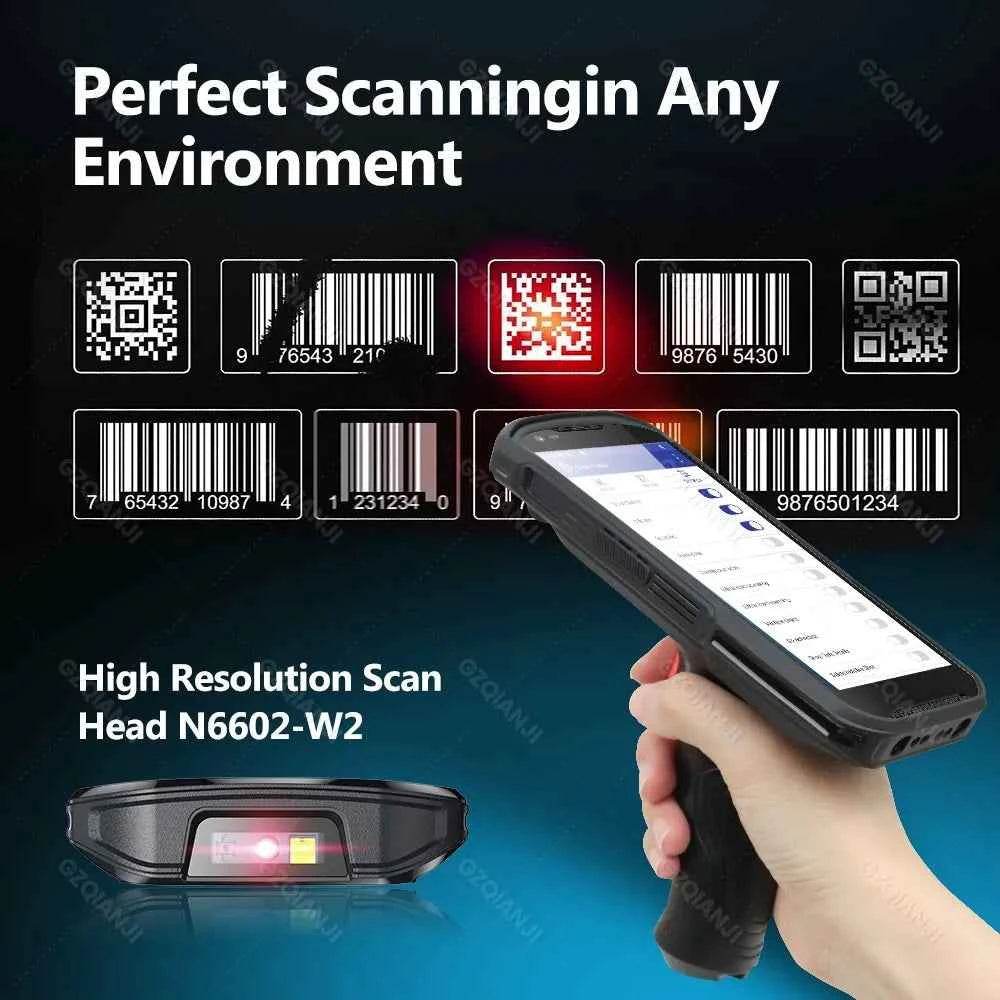

Barcode Scanning | |
Barcode Scanning |
N6602-W2 |
1D Symbologies |
Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codabar,Interleaved 2 of 5,China post 25,ISBN/ISSN, |
Code93,UCC/EAN-128,GS1 Databar,HIBC,etc. | |
2D Symbologies |
PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,MaxiCode,Hanxin Code,etc. |

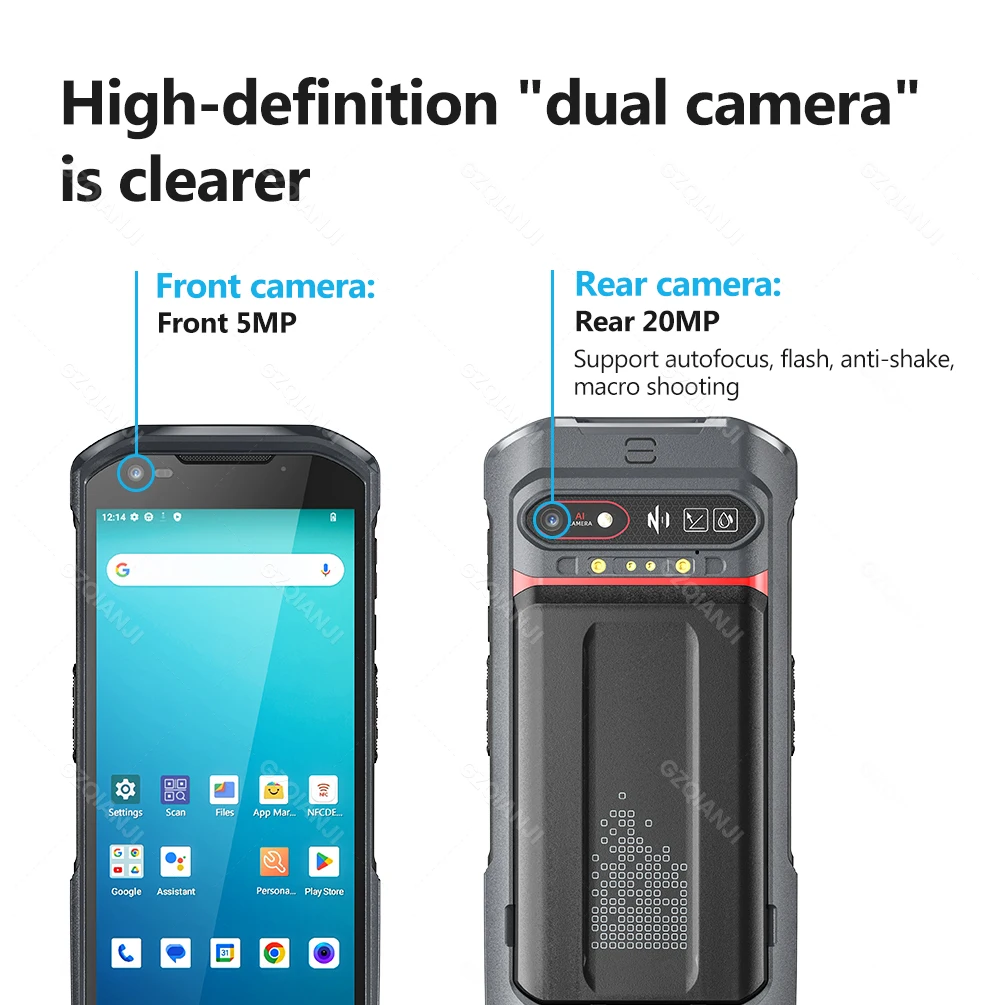

Camera（Standard） | |
Rear camera |
20MP HD camera,Support auto focus, |
Flash, Anti-shake, Macro shooting | |
Front camera |
5MP color camera |

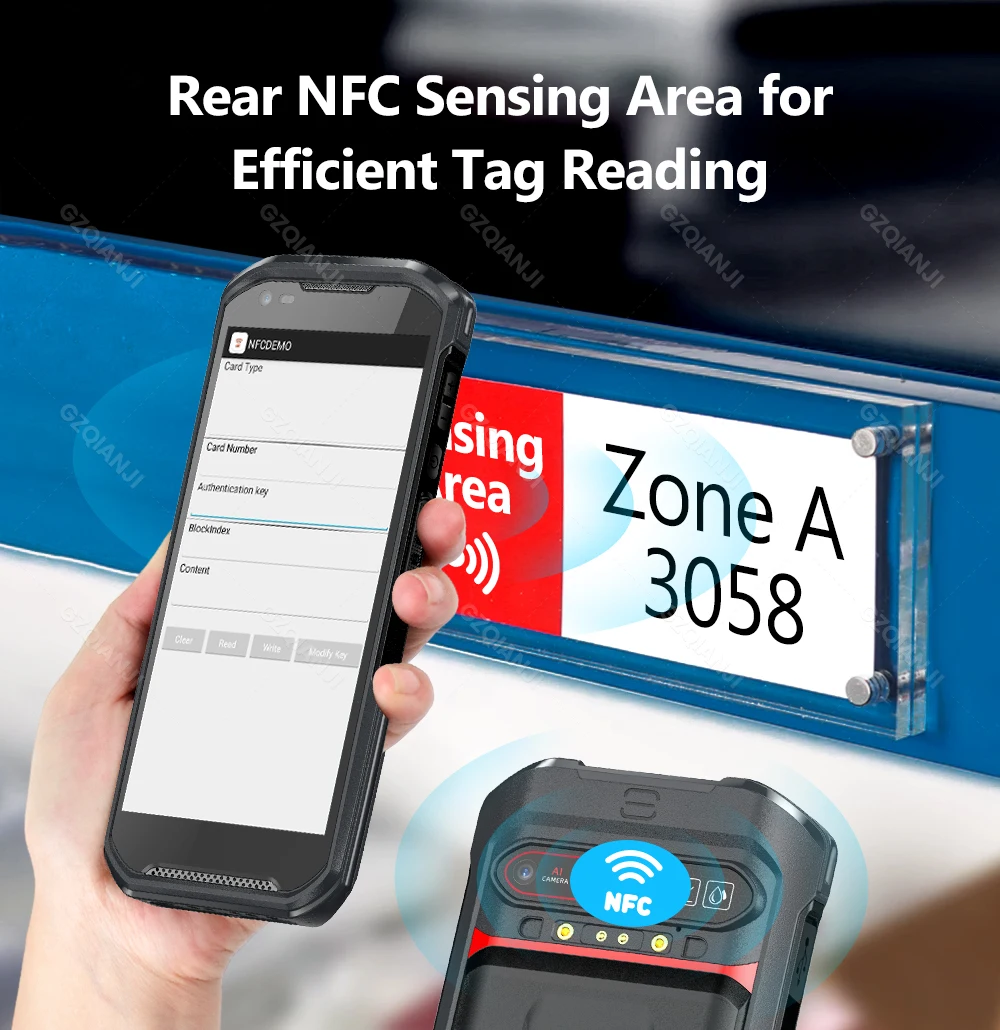

NFC（Optional） | |
Frequency |
13.56MHz |
Protocol |
Support ISO14443A/B, 15693 agreement |
Distance |
2cm-5cm |
User Environment | |
Operating temperature |
-20℃ - 55℃ |
Storage temperature |
-40℃ - 70℃ |
Environment humidity |
5%RH--95%RH(no condensation) |
Drop specification |
temperature range, 6 sides can withstand a height of 1.5 meters,falling to the marble. |
Rolling test |
0.5m continuous rolling, 1000 times |
Sealing |
IP66 |
Accessories | |
Standard |
Adapter, Data cable, Protective film, Instruction manual |
